DG2000-2508kWh

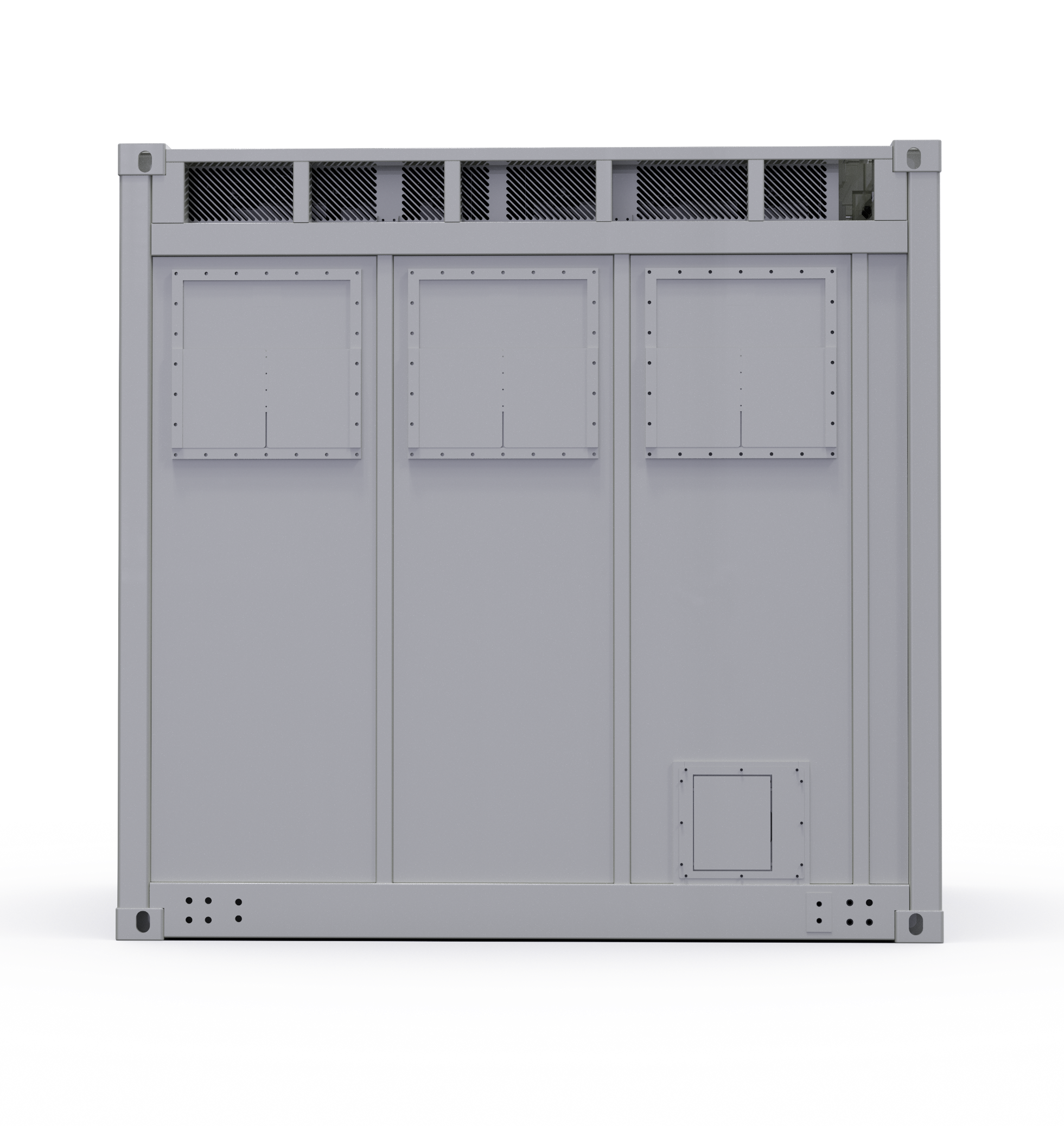

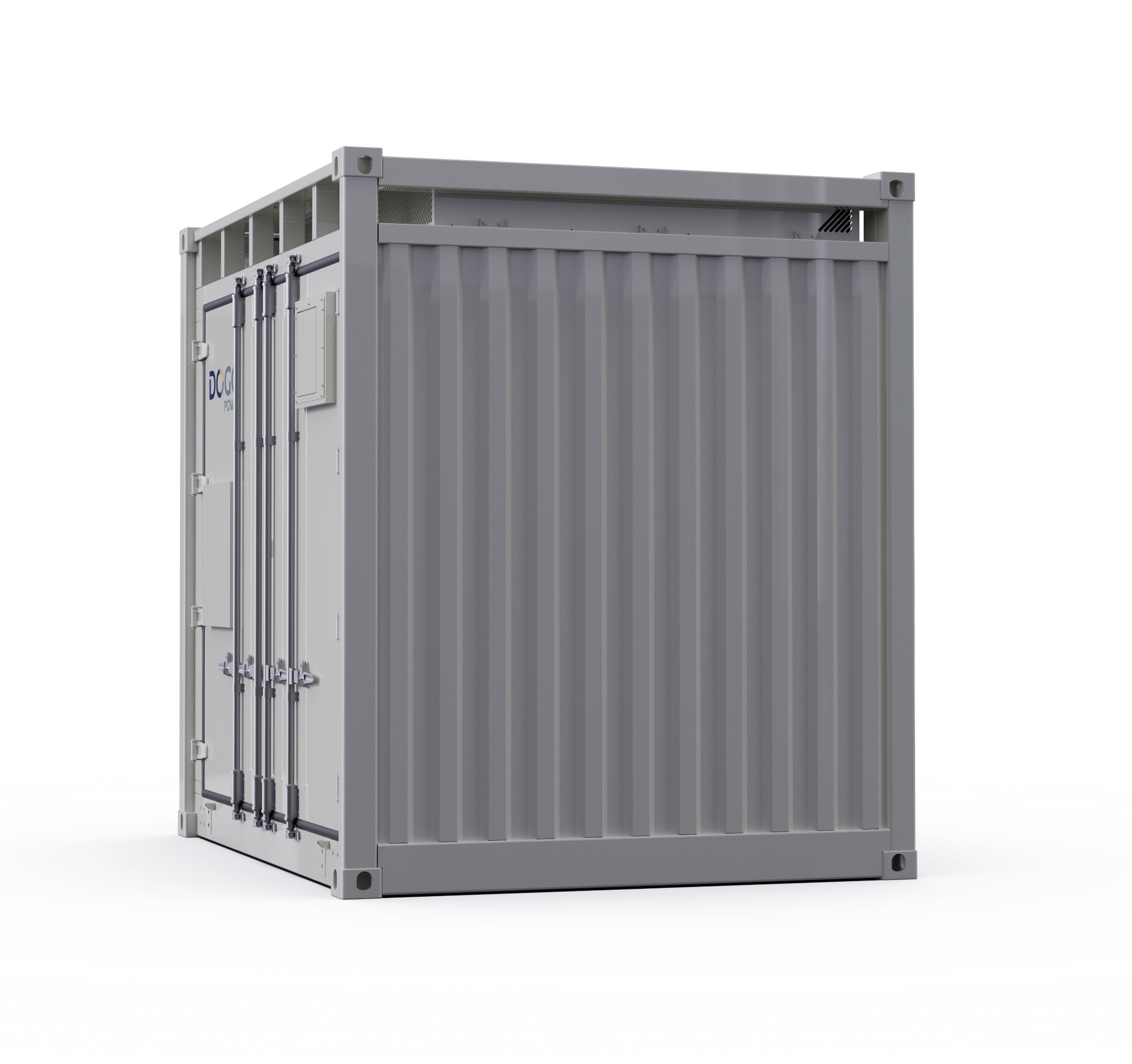

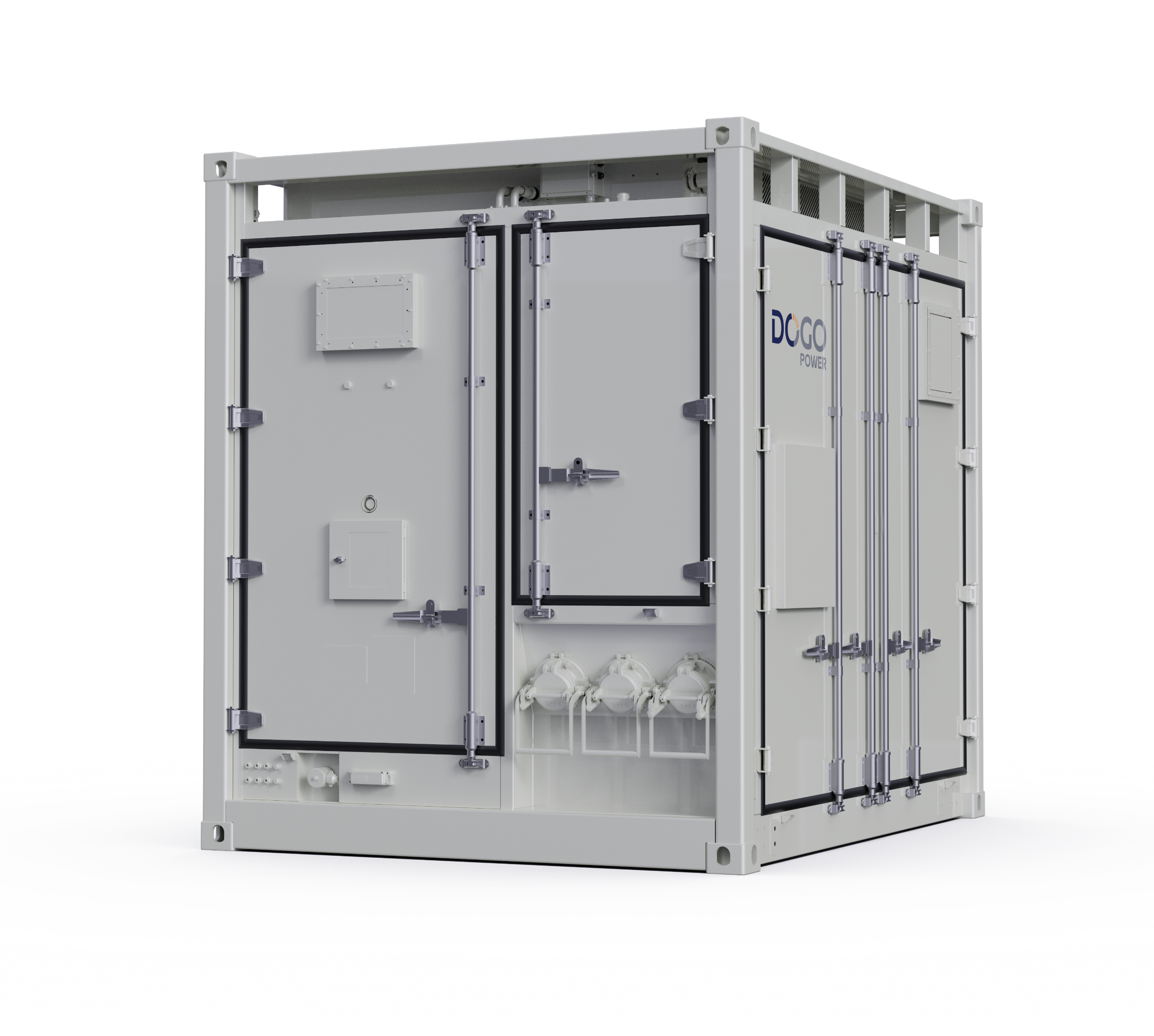

An intelligent grid-forming energy storage system for utility-scale grid-tied/off-grid applications. All-in-One design with a 10-foot container integrating liquid-cooled PCS, LFP batteries, BMS, fire suppression and liquid-cooled thermal management systems. Supports 1–8 units per Block. Unique quick-plug terminal design with zero underground cables enables rapid deployment, hassle-free grid connection, and smart, efficient grid-forming operation.

Features

Grid-Forming Stability

In-house 4S stack, VSG GFM
Seamless on/off-grid; ms-level multi-source sync
Proprietary constant PV-ESS output, predictable & controllable
Streamlined Deployment

10ft std unit, all-in-one design
Pre-integrated PCS
1–4 units per block, flexible combination
Quick-plug inter-unit power terminals
Safety & Reliability

Cell-level AI pre-warning for thermal runaway
Active venting, zero flammable gas buildup
Pack-level aerogel isolation + aerosol fire suppression
Smart O&M

Software-defined ESS, flexible adaptation
AI optimization, extended battery life
AI forecasting with PV, load & tariff
Multi-timescale anomaly detection & pre-warning
*Real-time monitoring / mid-long term trend / periodic inspection

Technical Specifications

DG2000-2508kWh-2H0

Battery Type:

LFP/314AH
Rated capacity:

2508kWh
Battery voltage range:

1000~1500V
Maximum charge/discharge rate:

0.5 CP
System temperature control method:

Pack, PCS Dual Liquid Cooling
Operating humidity range:

5 ~ 95% (non-condensing)

DG2000-2090kWh-2H0

Battery Type:

LFP/314AH
Rated capacity:

2090kWh
Battery voltage range:

1000~1500V
Maximum charge/discharge rate:

0.5 CP
System temperature control method:

Pack, PCS Dual Liquid Cooling
Operating humidity range:

5 ~ 95% (non-condensing)

DG2000-1672kWh-2H0

Battery Type:

LFP/314AH
Rated capacity:

1672kWh
Battery voltage range:

1000~1500V
Maximum charge/discharge rate:

0.5 CP
System temperature control method:

Pack, PCS Dual Liquid Cooling
Operating humidity range:

5 ~ 95% (non-condensing)

Related Downloads

Technical Specifications
Relevant Certificates
User Manual & Quick Installation Guide

DG2000-2508kWh-2H0
